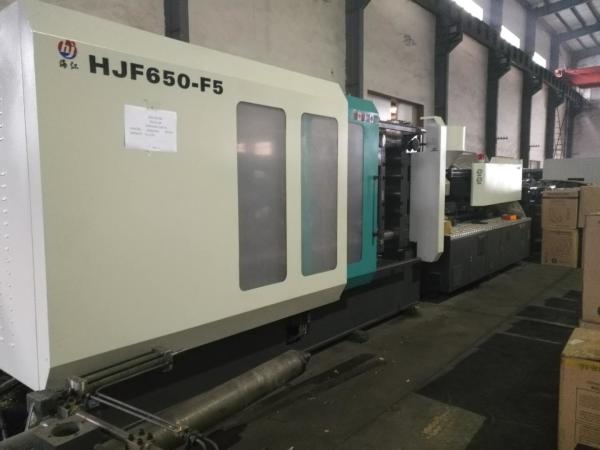

Automatic Hydraulic Injectin Molding Machine Of Plastic Chair High Speed

Name: Automatic Hydraulic Injectin Molding Machine Of Plastic Chair High Speed
Brand: HAIJIA
Price: 1 USD

Quality Automatic Hydraulic Injectin Molding Machine Of Plastic Chair High Speed wholesale

Brand Name : HAIJIA

Model Number : HJF650

Certification : CE ISO9001

Place of Origin : China (Mainland)

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000set/sets per year

Delivery Time : 20-30days

Packaging Details : Standard Export Package for Injection Machine

Clamo Tonnage : 6500

Toggle Stroke : 890

Ejector Stroke : 250

Ejector Tonnage : 150

Max.Pump Pressure : 16

Pump Motor Power : 55

Contact Now

high speed automatic hydraulic and premium injectin molding machine of plastic chair

SPECIFICATION		HJF650
Screw Type		A	B	C	D
Screw Diameter	Mm	90	95	100	105
Screw L/D Ration	L/D	20	19	18	17.1
Shot Size(Theoretical)	cm3	2800	3117	3454	3808
Injection Weight(PS)	g	2517	2805	3108	3427
Injection Rate	g/s	552	612	679	748
Injection Pressure	MPa	184	165	149	135
Screw Speed	rpm	150
Clamping Force	KN	6500
Opening stroke	Mm	890
Space Between Tie Bars	mm	890*890
Max.Mold Height	mm	900
Min.Mold Height	mm	350
Ejector Stroke	mm	250
Ejector Tonnage	KN	150
Max.Pump Pressure	MPa	16
Pump Motor Power	KW	55
Heater power	KW	42.95
Machine Dimension(LWH)	M	10.22.242.71
Machine weight	T	28
Oil Tank Capacity	L	1300

Automatic Hydraulic Injectin Molding Machine Of Plastic Chair High Speed

1.Due to new toggle design with optimized kinematics.

Take 200-ton clamping unit for example
Vm: Moving speed of movable platen
Vo: Moving speed of oil cylinder

2.The rigid one-piece injection base supports the common slide rail for injection and screw movements.

3.Highly optimized servo-hydraulic technology, with improved efficiency for lower energy consumption.

4.The technologically matured Jupiter II Series convinces not only with rapid, smooth mold movements and its highly economical energy consumption. The latest upgrade to the Jupiter - called “Plus” - has brought significant additional improvements.

5.FOUR SHORT STROKE MOLD BREAK CYLINDERS

For accurate mold height control with closed loop position feedback, ensures the mold is clamped with parallel movement.
